How to Mount Metal Signs on a Fence, Post, or Wall

Which hole pattern matches the mount?

Choose the hole pattern from the support, not from habit: the order offers no holes, all four corners, top corners, center-top and bottom, or a custom pattern, and any pattern adds $5.00 a sign. No holes is the default. A pattern you add later with a hand drill will go through whatever artwork is already printed there.

On the 24 x 36 in single-sided sign, for example, no holes is $181.89 and any drilled pattern makes it $186.89. The page does not list a hole diameter, so use washers under bolt heads and check the hole positions against your post or rail on the proof.

Straight corners are the default behind the $74.89 opening price. Rounded corners are a 1/8, 1/4, 3/8, or 1/2 inch radius and add $10.70 a sign. A border or a phone number drawn into a square corner will get clipped when the corner is rounded. The 24 x 36 aluminum sign cost guide lists the size-by-size totals, including double-sided printing.

How do you mount a metal sign on a fence?

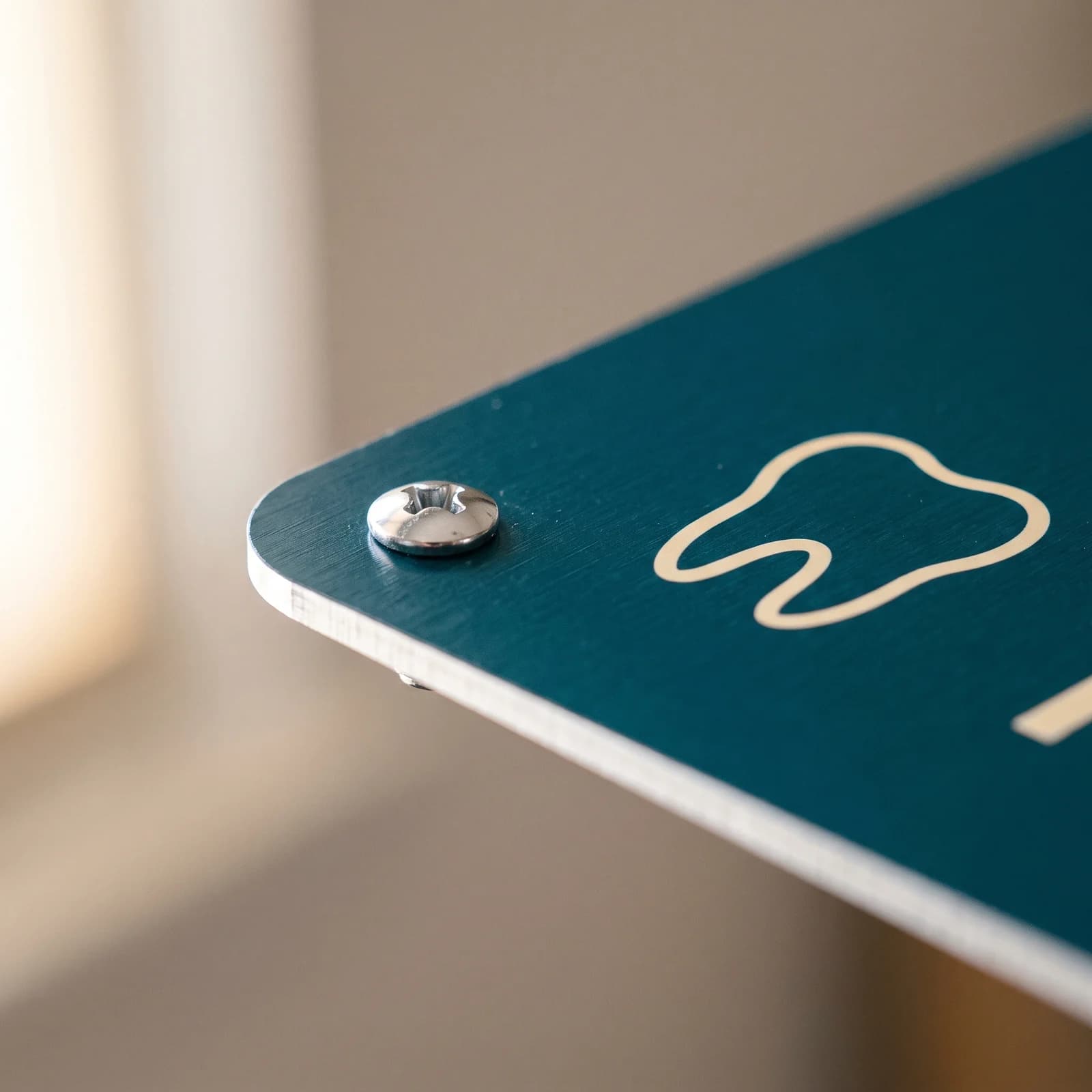

On chain link, fasten through the mesh or with fence clips at the holes, and keep the panel flat against the fence so it does not become a sail on two fasteners. Four corner attachments spread the load better than two. Washers keep a bolt head from pulling through a hole. Use outdoor hardware. Indoor screws rust and stain the fence, and the rust is in the screw, not in the aluminum panel.

On a wood fence, drive the screws into a rail or a solid board. A thin picket flexes, and a sign hung only on pickets works loose. Pre-fit the panel, mark through the holes, and then fasten. Do not force a hole to line up by bending the aluminum. If the fence boards will not take a fastener, the sign needs a post instead.

How do you mount a metal sign on a post?

On a single metal U-channel, the usual parking-lot post, use center-top and bottom holes so both bolts pass through the channel. On a round post, use a clamp or a U-bolt made for that diameter rather than drilling the post to match a guess. Two wood posts, with all four corners bolted, carry a wider panel without relying on one fastener line.

Set the post plumb before you hang the sign. A leaning post makes a straight panel look crooked, and it is harder to fix once the bolts are tight. The bottom of the panel still has to clear the height rule in the next section.

Hardware list to have on site before the panel arrives:

• The post or posts, cut for the mounting height you measured.
• Bolts, nuts, and washers for a U-channel, or clamps for a round post, or exterior lags for wood.
• A level, and a way to mark hole centers on the post.
• Extra fasteners. One stripped head should not stop the install.

How do you mount a metal sign on a wall?

Match the anchor to the wall you actually have. Brick, block, and concrete need masonry anchors rated for that material. A wood-framed wall needs screws into studs or into solid backing, not only into the finish surface. Stucco and thin paneling are finishes. They are not the structure. If you cannot find solid backing, stop and use a post.

Four corner holes keep the panel from pivoting on one screw. Mark all four, set the anchors the wall calls for, and hang the top pair first so you can check level before the bottom pair locks it.

Keep the sign off a seam, a control joint, or a place where a door swings into it. Outdoor panels still need the printed face readable from the path people walk. A sign around the corner from that path is mounted, and still unused.

How high should a parking sign be mounted?

Mount the bottom of an accessible parking identification sign at least 60 inches above the ground, and the bottom of a roadside sign at least 7 feet above the curb where people park or walk, or 5 feet in rural areas. The two rules cover different signs, and both are minimums.

For a sign at the side of a road, the Federal Highway Administration's MUTCD, 11th Edition, Section 2A.15, sets the minimum height from the bottom of the sign. In rural areas that minimum is 5 feet, measured to the near edge of the pavement. In business, commercial, or residential areas where parking, bicyclists, or pedestrians are likely, or where the sign might be blocked, the minimum is 7 feet, measured to the top of the curb, or to the near edge of the traveled way if there is no curb. A sign over a sidewalk is also 7 feet, measured to the sidewalk. The current bound edition is the 11th Edition with Revision 1, December 2025. Confirm the paragraph still reads this way in that PDF before you set a post on a public street. A state supplement can be stricter.

For an accessible parking space, the number is different. The U.S. Access Board's ADA Standards, section 502.6, require the identification sign to include the International Symbol of Accessibility, and van spaces to say "van accessible." The bottom of that sign must be at least 60 inches above the finish floor or ground. The Access Board's parking guide explains why: the sign has to stay visible while a vehicle is parked in the space. Sixty inches is 5 feet. It is a minimum, not a target height, so an accessible-space sign set higher still meets it, and it is not a suggestion to mount a street sign at bumper height.

A private lot is not automatically a public road, and a "no parking" panel is not automatically an accessible-space sign. Use 502.6 for the accessible-space identification sign. Use the MUTCD height when the panel is acting as a roadside regulatory sign where people park or walk, and where the road is open to public travel. Ask the city or county that maintains that street when the drive aisle connects to a public street. This page does not state a city code.

What mistakes should you avoid at install?

The most common mistake to avoid is ordering "no holes" and then drilling through the phone number on install day. For $5.00 a sign, the hole pattern is set before the proof, so the artwork can move first.

A second mistake is mixing up the two height rules. The ADA's 60 inches is a floor, so an accessible-space sign mounted at 7 feet still meets it. Where an accessible-space sign also sits beside a public road or over a sidewalk, the MUTCD's 7 foot minimum can apply too, and the higher number wins. What does not work is a sign over a sidewalk at 60 inches. Read which rules cover the spot, then meet all of them.

A third mistake is indoor hardware outdoors. The aluminum panel is the rust-proof part. A plain steel screw in a wet fence is the part that streaks. Buy the fastener for the weather and for the wall.

How do you order the panel?

Order the size, the printed sides, the corners, and the holes as one configuration. The aluminum sign page opens on a 12 x 18 in single-sided sign with no holes at $74.89. Single-sided stock sizes without holes run $74.89 to $181.89, drilled holes add $5.00, and rounded corners add $10.70. Single sided or double sided is a choice on that page. Use one face when the back sits on a wall. Use two faces when people approach a post from both directions.

Send a ChatGPT or AI image and we make it print ready for $14.99 per item, or send your file after checkout for the same $14.99. Design it for me is +$29.99 and includes two revisions, and that add-on is free when the item is $499 or more. The free digital proof is the moment to confirm the hole pattern against the words. Production is 3 business days after you approve it. Flat $10 shipping to any US address is separate, and the post hardware is still yours to supply.
